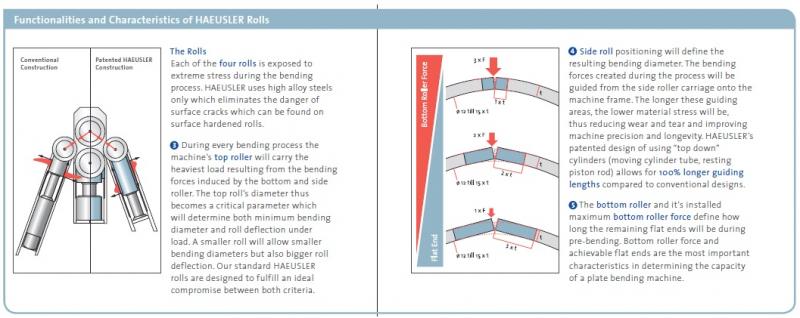

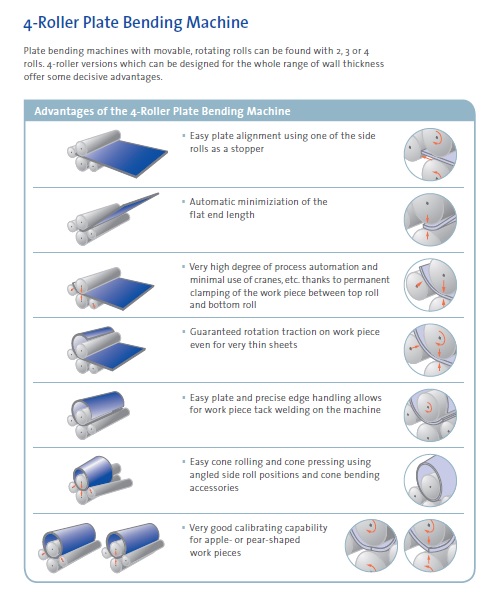

A 4-ROLLER PLATE BENDING MACHINE WITH LINEAR SIDE ROLLER POSITIONING OFFERS THE FOLLOWING ADVANTAGES:

A. MAXIMUM BENDING QUALITY AND REPEATABILITY INDEPENDENT OF MATERIAL CHARACTERISTICS AND BENDING DIAMETER.

B. MINIMAL PROCESS TIME.

C. MAXIMUM PROCESS SAFETY.

D. MAXIMUM DEGREE OF PROCESS AUTOMATION.

APPLICATIONS:

1. HEAVY TANKS

2. MS PIPE

3. STAINLESS STEEL PIPE

4. HEAVY REACTORS.

TECHNICAL SPECIFICATIONS:

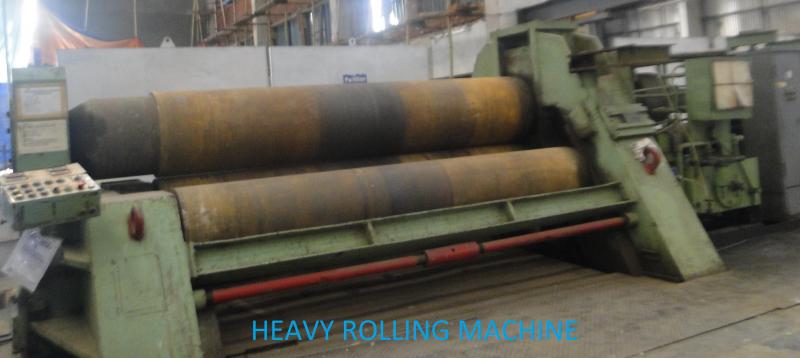

Heavy Rolling Machine Hausler Germany Make
Model VRM-HY -3500x50
Machine No. MC020
Yield Point - 240 N/mm2
No. of Roller 4
Length of Rollers - 3540mm
Roller Diameters - Top Roller - 680 mm or 525 mm Interchangeable
Side Roller - 550 mm
Bottom Roller - 680 mm
Max width of Plate - 3500 mm

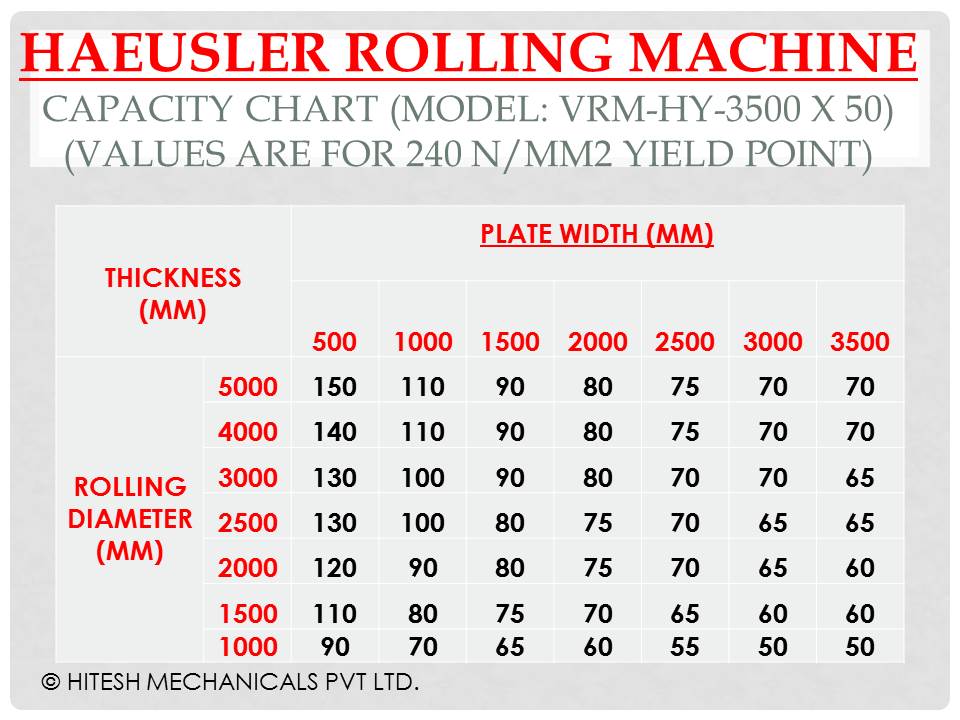

ROLLING CAPACITY:

(PLEASE SEE THE ABOVE CHART)

Cold Rolling  3500Wx40T - 810 Dia Mini.
3000Wx90T - 3000 Dia Mini. (With 680 Dia Top Roller)
3500Wx18T-650 Dia Min. (With 525 Dia Top Roller)

CONE ROLLING CAPACITY:

Mini. Dis. of Smaller end - 800 mm
Min. Cone angle - 20'
Max. Slant height - 2800 mm



WHY US??

BECAUSE END EDGES OF PLATE BENDING FROM US:

HEAVY PLATE BENDING ROLLING MACHINE & CONE ROLLING MACHINE UPTO CAPACITY OF 150MM THK WITH PRE-PUNCHING (AUTOMATIC)

HEAVY PLATE BENDING MACHINE
